Exposure Lens Anamorphic Exposure Lens

Lens Spec.
Parameter Spec. Remark
Scannig Area 12° x 12° Garvano Mirror
Mag. 1 :  3 xy Ratio
NA 0.08 Object NA
EFL 86mm -
Distortion 0.002% -
Wavelength 1064 ㎚ Laser
FWD 60 ㎜ Object~1st surface
TTL 200 ㎜ 1st surface~Last surface
Size Φ 90 ㎜ -

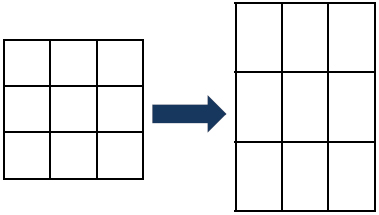

Beam Shape
Anamorphic Exposure Lens

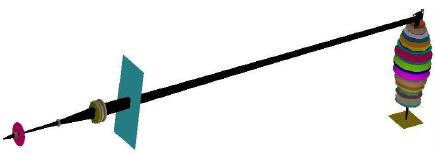

Lens Shape
Anamorphic Exposure Lens

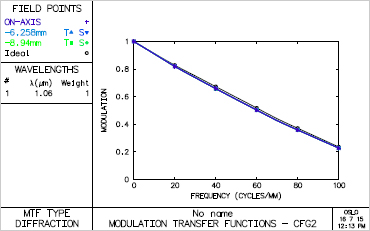

MTF(Field)
Anamorphic Exposure Lens

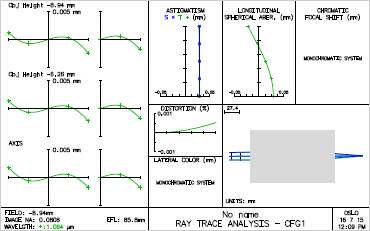

Ray fan(xz)
Anamorphic Exposure Lens

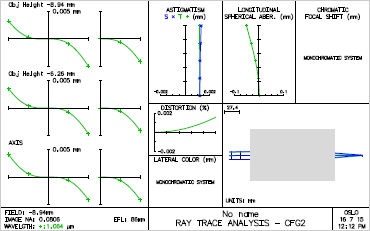

Ray fan(yz)
Anamorphic Exposure Lens
