Microscopic Objective Lens
- Introduction
-
Features of objective lens
The magnification of the objective lens is produced on the basis of the tube lens (f 200mm).
In general, high-magnification objective lenses have large number of numerical apertures and thus require precise production technology.- Purpose : For machine vision, pattern inspection , LCD inspection,
PCB inspection, Laser processing, Laser repair …… - For use with cameras : Area scan camera(2/3”, 29M), Line scan camera(12k)
- Product family : APO 5x, APO 10x, UV 50x, NUV 50x, NIR 50x
- Purpose : For machine vision, pattern inspection , LCD inspection,
- Objective Lens Series
-
Model FOV NA WD EFL DOF Parfocal
DistanceOD WO 5x Φ 6.4 mm 0.28 15 mm 40 mm ± 3.5um 95 mm Φ 42.0 mm WO 20x Φ 1.6 mm 0.24 32 mm 10 mm ± 4.0 um 95 mm Φ 33.2 mm UV 50x Φ 0.24 mm 0.42 12 mm 4.0 mm ± 1.0 um 95 mm Φ 33.2 mm NUV 50x Φ 0.24 mm 0.42 12 mm 4.0 mm ± 1.0 um 95 mm Φ 33.2 mm NIR 50x Φ 0.24 mm 0.42 17 mm 4.0 mm ± 1.0 um 95 mm Φ 33.2 mm

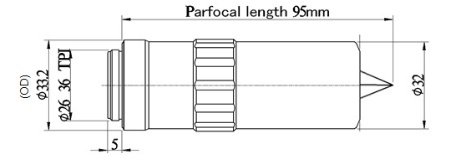

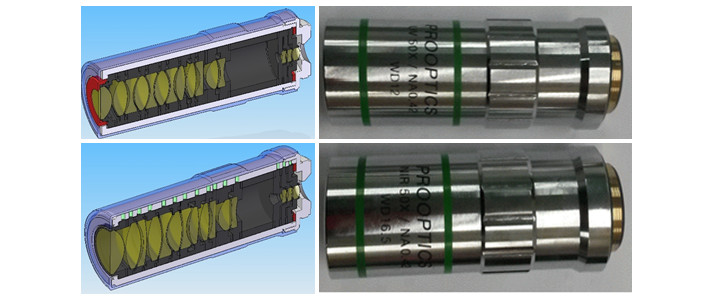

- Lens Shape

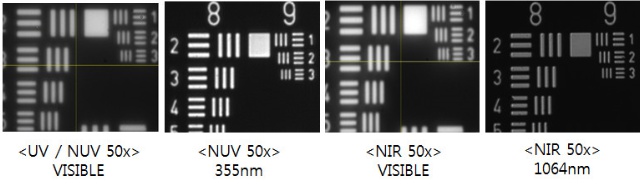

- Object Lens Test Image
