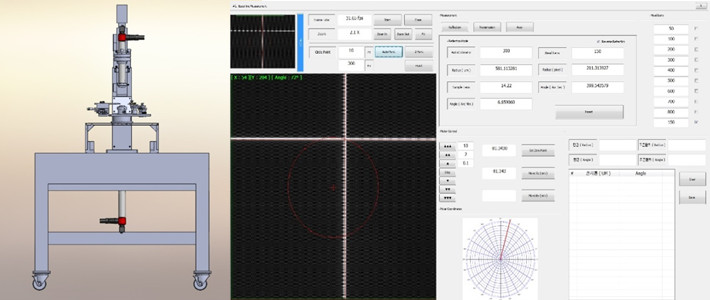

Eccentricity Microscope
Introduction

Features of eccentric microscope

This can measure the reflection / transmission eccentricity which determines the performance of the lens in a precise, easy manner, and secures high precision and repetitive reproducibility by applying the autocollimator with 2.6 arc seconds per resolution.
Microminiature and available to cope with a single-focal phone camera & digital camera lens Measuring eccentricity of the lens and assembly eccentricity of EFL, BFL, Radius, and assembling lenses is also possible.

  • High resolution motion control, high-precision angular resolution
  • The measurement time can be shortened due to easy and simple removal of the lens
