Medical LensStereo Microscope

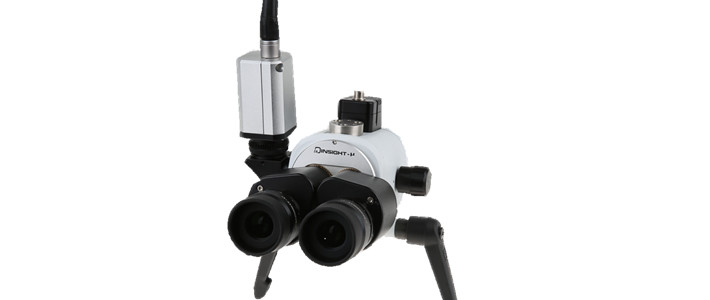

Stereo Microscope
Introduction

Features of medical stereo microscope

The stereo microscope is used for medical examination and surgery in hospitals because people can feel a stereoscopic effect like they use a magnifying glass to see something with both eyes.

  • Purpose : For examination of ear, nose and mouth, and surgery
  • For use with cameras : 1/3” Color CCD
  • For use with cameras : Stereo Microscope
Lens Spec.
Parameter Spec. Remark
Camera 7 um CCD CCD size 1/3” (D 6) ㎜
Mag 1:2.7  3Step Manual Changer
System Mag 3X,  5X, 8X With 10X Eyepiece
Object Lens F 250mm Option 150~400mm
50mm Step
Illumination White LED
MTF 0.4 이상 @40lp/mm
DOF ±0.20mm Optical DOF @Object
Wavelength 435 ~ 650 ㎚
F.O.V 18 ~ 50 mm
MTF(Field)
CDR Lens

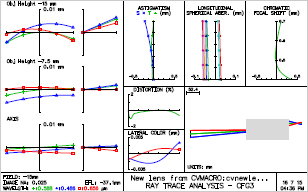

Ray fan
CDR Lens

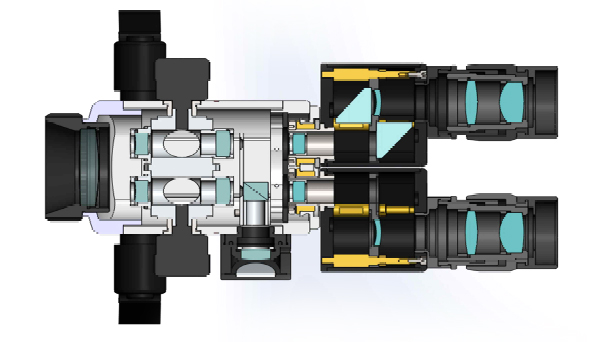

Shape
CDR Lens
