Fixed Focus Lenses Ⅰ AF12k2.6x
- Lens Spec.
-
Parameter Spec. Remark Camera 12k 5㎛ Line CCD CCD size 61.44 ㎜ Mag. 2.6 x - F/# F/7.14 Image NA 0.07 EFL 162.41 mm MTF 0.4이상 @ 100lp/㎜ DOF ± 0.01 ㎜ Optical DOF @Object Distortion 0.12% 이하 Wavelength 450 ~ 630 ㎚ Visible ray FWD 8 ㎜ Object~Body BWD Camera Fixed TTL 530.065 ㎜ Object~CCD Size Φ104 x 557.51㎜ With Camera Iris Variable Manual CCD adapter Inclusion Illumination Exclusion

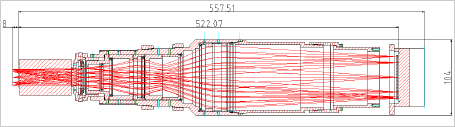

- Lens Shape

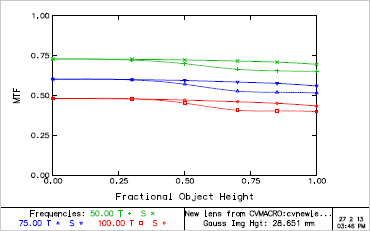

- MTF(Field)

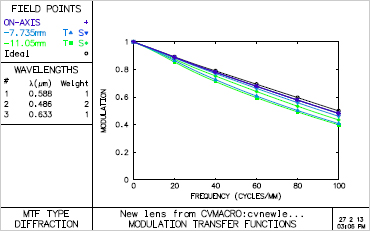

- MTF(Frequency)

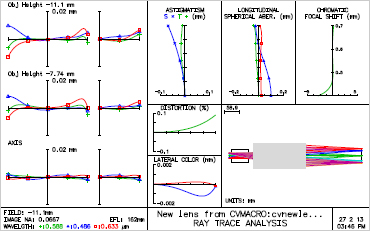

- Ray fan
- AF12k2.6x Test Image
- Grid Chart
- USAF Chart
