Fixed Focus Lenses Ⅰ AF29M002012x
- Lens Spec.
-
Parameter Spec. Remark Camera 29M 5.5㎛ AreaCCD CCD size 43.26 ㎜ Mag. 0.02 ~ 0.12 x F/# F/7 Image NA 0.07 EFL 120 ㎜ MTF 0.4 @ 90lp/㎜ DOF ± 200~5.56 ㎜ Optical DOF @Object Distortion 0.05% 이하 Wavelength 435 ~ 656 ㎚ Visible ray FWD 6040~1040 ㎜ Object~1st surface BWD 77.27~89.25 ㎜ Last surface~CCD TTL 6215~1227 ㎜ Object~CCD Size Φ 56, 106 ㎜ Only Lens Iris Inclusion Variable CCD adapter Exclusion Possible Illumination Exclusion

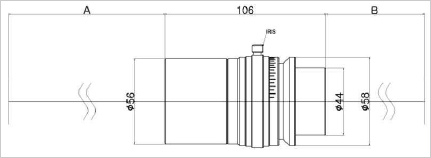

- Lens Shape

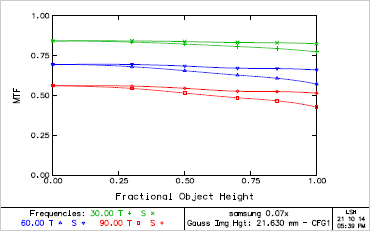

- MTF(Field)_0.02x

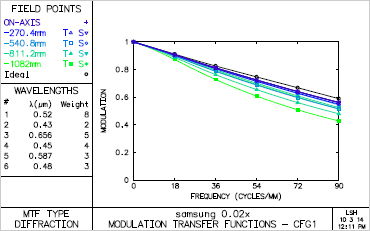

- MTF(Frequency)_0.02x

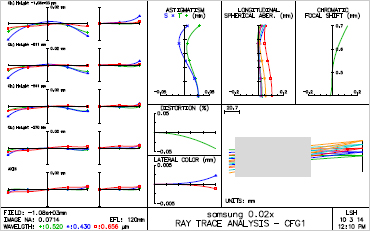

- Ray fan_0.02x
- AF29M002012x Test Image(0.12x)

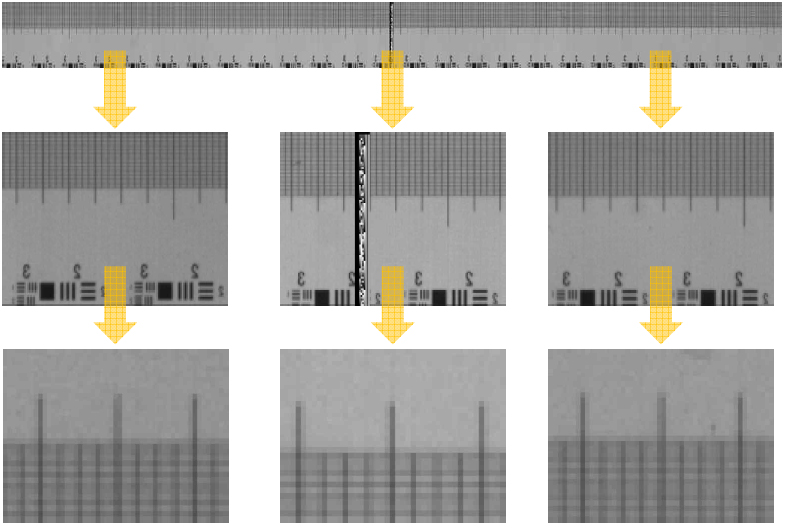

- Grid Chart

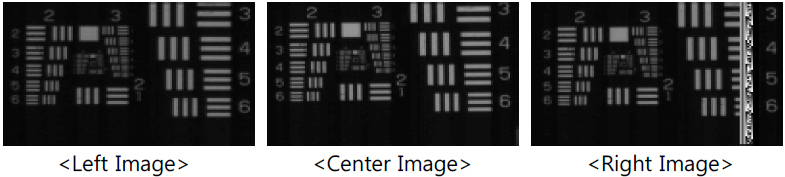

- USAF Chart
