Vari-Focal Lenses Ⅰ AV12k0310x
- Lens Spec.
-
Parameter Spec. Remark Camera 12k 5.2㎛ Line CCD CCD size 63.898 ㎜ Mag. 0.3~1.0x manual Zoomed F/# F/5.5 ~ 6.2 Image NA 0.063~0.042 EFL 110.27~116.6 ㎜ MTF 0.4 ~ 0.2 @ 100lp/㎜ DOF ±1.0 ~ ±0.2 ㎜ Optical DOF @Object Distortion ± 0.05 % Wavelength 435 ~ 656 ㎚ Visible ray FWD 440 ~ 185 ㎜ Object ~ 1st surface BWD 86.3 ~ 158.4 mm Last surface ~ CCD TTL 610 ~ 439 ㎜ Object ~ CCD Size Φ55, 94~82 ㎜ Only Lens Iris Fixed CCD adapter Exclusion Possible

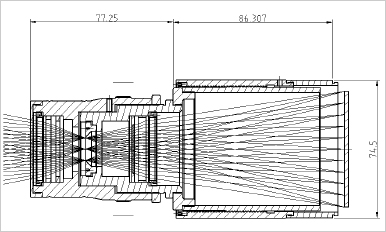

- Lens Shape(0.3x)

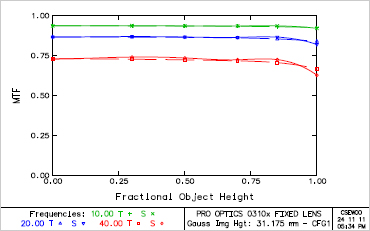

- MTF(Field)_0.3x

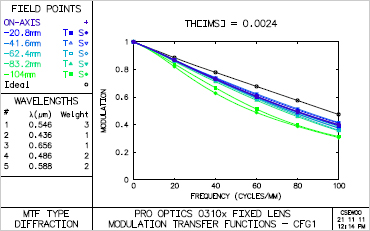

- MTF(Frequency)_0.3x

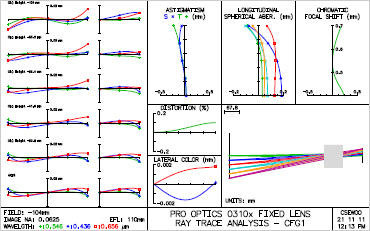

- Ray fan_0.3x
- AV12k0310x Test Image(0.6x)

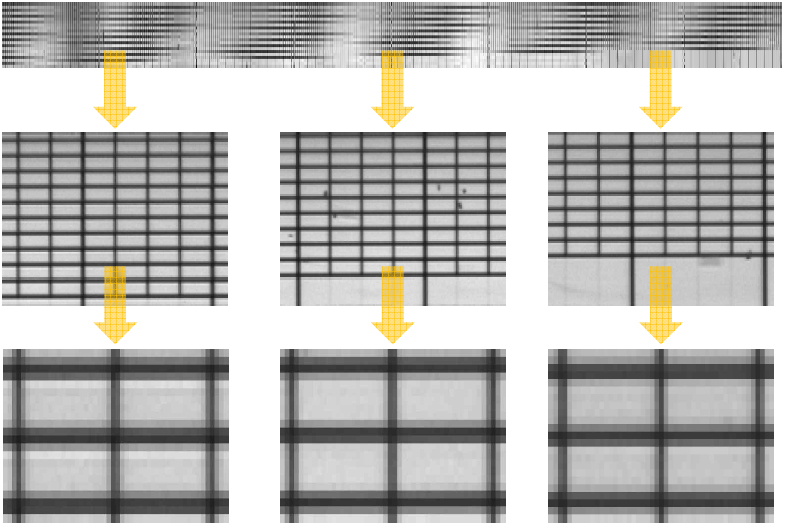

- Grid Chart

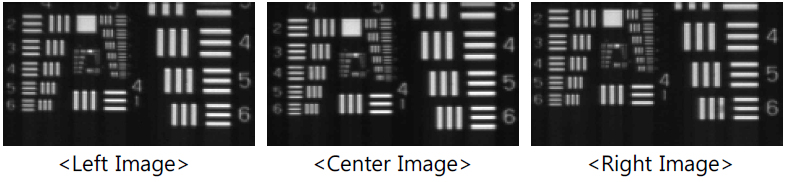

- USAF Chart
