Vari-Focal Lenses Ⅰ AV16k0105x
- Lens Spec.
-
Parameter Spec. Remark Camera 16k 5㎛ Line CCD CCD size 81.92 ㎜ Mag. 0.1~0.5x manual Zoomed F/# F/7.4~9.7 Image NA 0.07~0.05 EFL 140.1~ 141.1 ㎜ MTF 0.25 @ 100lp/㎜ DOF ±2.5 ~ ±0.2 ㎜ Optical DOF @Object Distortion 0.1 % under Wavelength 435 ~ 656 ㎚ Visible ray FWD 1491 ~ 370 ㎜ Object ~ 1st surface BWD 131 ~ 183 mm Last surface ~ CCD TTL 1670 ~ 638 ㎜ Object ~ CCD Size Φ51 Adapter Φ99 Iris Fixed CCD adapter Exclusion Possible

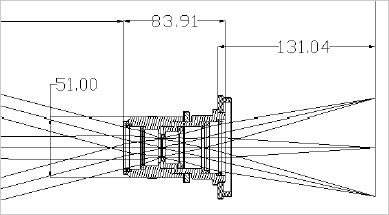

- Lens Shape(0.1x)

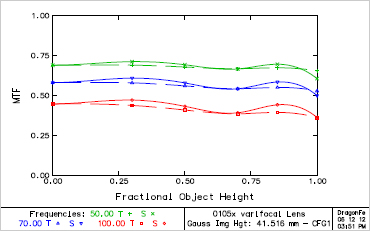

- MTF(Field)_0.1x

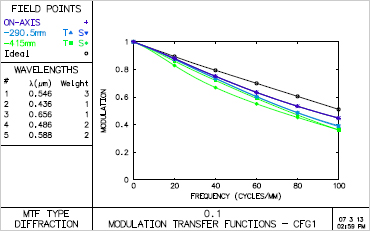

- MTF(Frequency)_0.1x

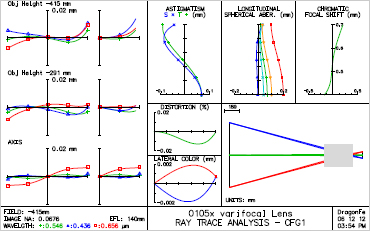

- Ray fan_0.1x
- AV16k0105x Test Image(0.114x)

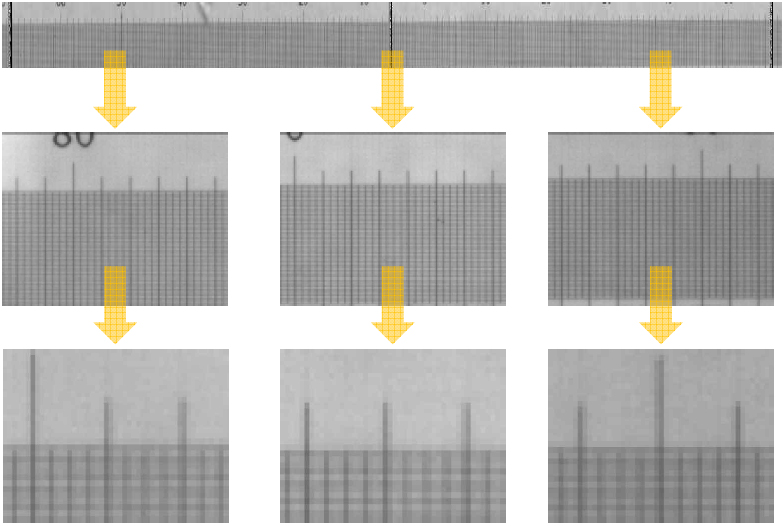

- Grid Chart

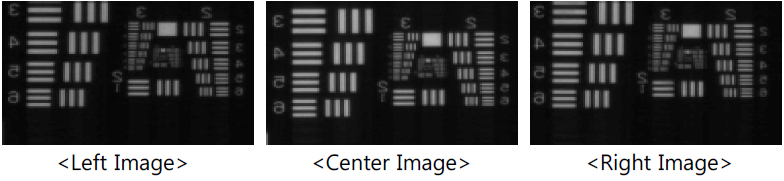

- USAF Chart
