Zoom Lenses AZ2k3050x

Lens Spec.
Parameter Spec. Remark
Camera 2k 10㎛ Line CCD CCD size 20.48 ㎜
Mag. 2.9~5.1 x
F/# F/1.4 ~ 18.6 Image NA 0.028
EFL 44.2~336.9 ㎜
MTF 0.35 @ 50lp/㎜
DOF ±0.45 ㎜ Optical DOF @Object
Distortion ± 0.02 %
Wavelength 435 ~ 656 ㎚ Visible ray
FWD 11.5 ㎜ Object~Bottom
BWD Camera Fixed
TTL 287.62 ㎜ Zoomed
Size 138.8x336.8
x116.38 ㎜
With Camera
Iris Variable Use motor
CCD adapter Inclusion
Illumination Inclusion On axis
Motor Exclusion VEXTA PK523PA-N10(Zoom)
PK523PA-N10(Iris)
Sensor Exclusion OMRON
EE-SX672(4ea),
Lens Shape
AZ2k3050x

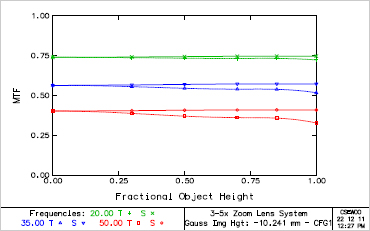

MTF(Field)_2.9x
AZ2k3050x

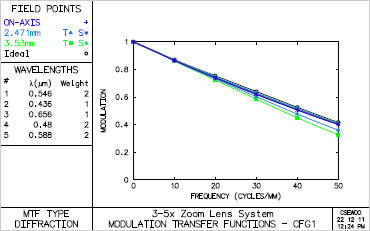

MTF(Frequency)_2.9x
AZ2k3050x

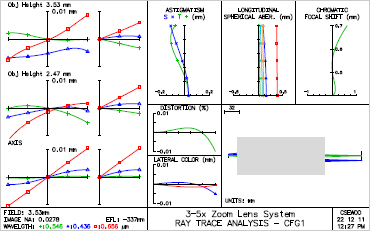

Ray fan_2.9x
AZ2k3050x
AZ2k3050x Test Image

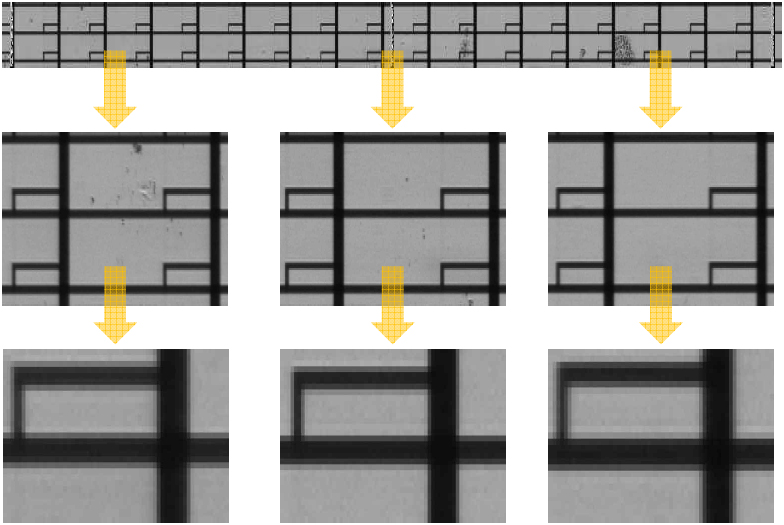

- Grid Chart

AZ2k3050x

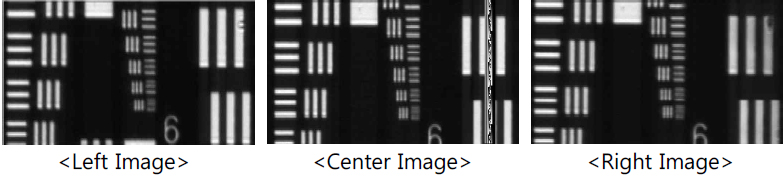

- USAF Chart

AZ2k3050x
