Zoom Lenses Ⅰ AZ8k1428x
- Lens Spec.
-
Parameter Spec. Remark Camera 8k 7㎛ Line CCD CCD size 57.344 ㎜ Mag. 1.4~2.8 x F/# F/2.0 ~ 3.7 Image NA 0.043~0.056 EFL 67.8~101.7 ㎜ MTF 0.35~0.4 @ 72lp/㎜ DOF ± 0.05~0.02 ㎜ Optical DOF @Object Distortion ± 1 % Wavelength 480 ~ 656 ㎚ Visible ray FWD 25 ㎜ Object~Bottom BWD Camera Fixed TTL 466.97 ㎜ Zoomed Size 140x467x196 ㎜ With Camera Iris Variable Use motor CCD adapter Inclusion Illumination Inclusion On axis Motor Exclusion VEXTA PMM33A-MG20(Zoom)
PMM33A-MG10(Iris)Sensor Exclusion OMRON
EE-SPX742(2ea), EE-SPX743(2ea)
- Lens Shape

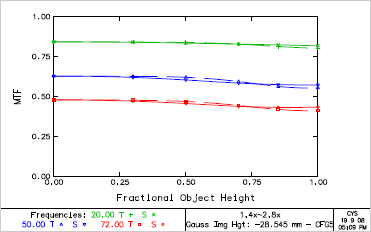

- MTF(Field)_2.1x

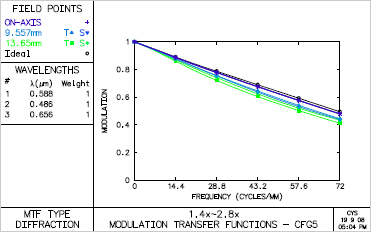

- MTF(Frequency)_2.1x

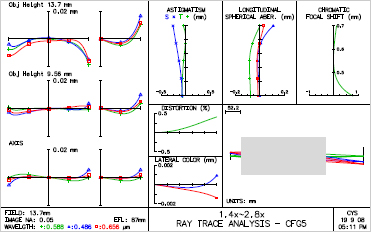

- Ray fan_2.1x
- AZ8k1428x Test Image(2.8x)

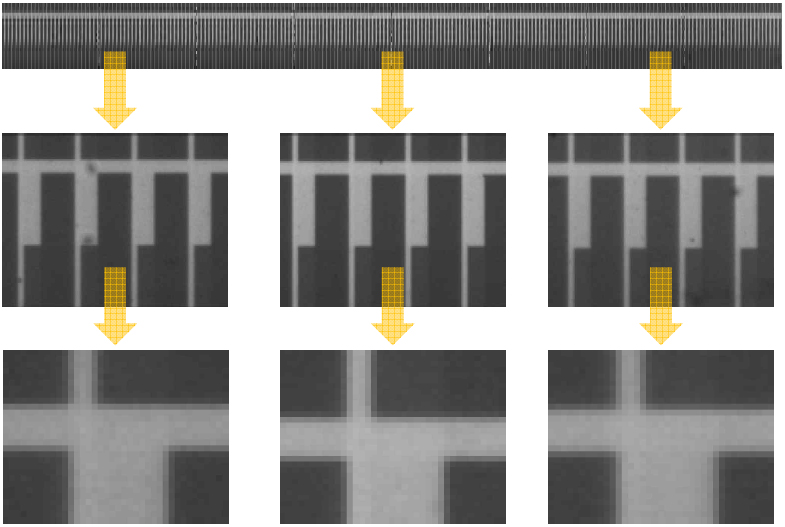

- Grid Chart

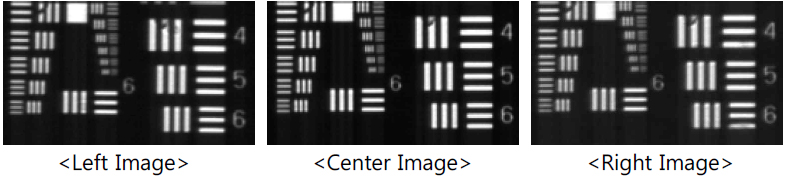

- USAF Chart
