Order made
Exposure Lens Ⅰ Anamorphic Exposure Lens
- Lens Spec.
-
Parameter Spec. Remark Scannig Area 12° x 12° Garvano Mirror Mag. 1 : 3 xy Ratio NA 0.08 Object NA EFL 86mm - Distortion 0.002% - Wavelength 1064 ㎚ Laser FWD 60 ㎜ Object~1st surface TTL 200 ㎜ 1st surface~Last surface Size Φ 90 ㎜ -
- Beam Shape

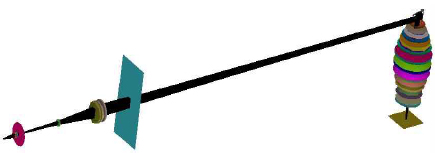

- Lens Shape

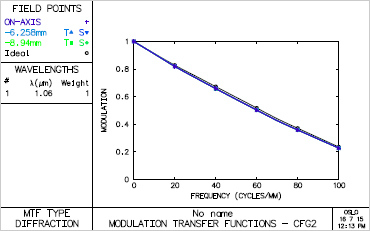

- MTF(Field)

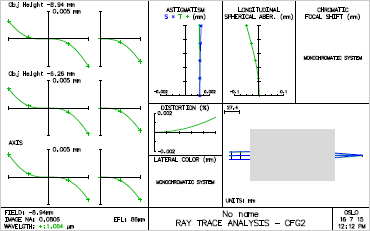

- Ray fan(xz)

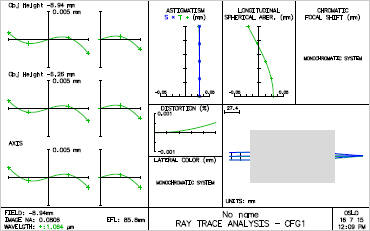

- Ray fan(yz)
