Order made

Exposure Lens Ⅰ Collimated Exposure

Home   >   Order made   >   Exposure Lens
Collimated Exposure
Model
Number		 Exposure Area
( mm )		 Lamp Power
( Kw )		 Intensity
( mW  )		 Uniformity
( % )		 Wavelenth
( nm )		 C/A,  D/A ( ° )
Model 1 410 x 510 5.00 65 90 330 ~ 450 1.5  / 1.5
Model 2 530 x 610 5.00 45 90 330 ~ 450 2.0  / 1.5
Model 3 75 x 75 1.00 300 90 350 ~ 425 3.0  / 3.0
Model 4 75 x 75 1.80 500 90 350 ~ 425 3.0  / 3.0
Model 5 50 x 50 0.75 450 90 330 ~ 450 3.0  / 3.0

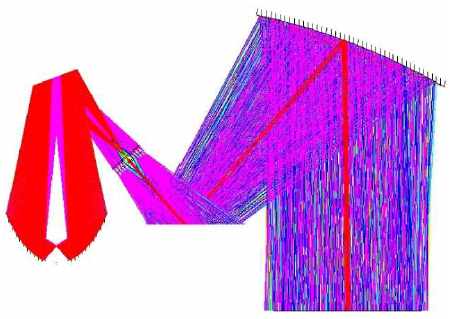

System Shape
Collimated Exposure

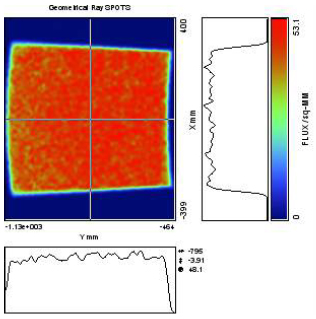

        Intensity / Uniformity
Collimated Exposure
