Exposure Lens Ⅰ Maskless Exposure Lens
Maskless Exposure Lens 1.68x
- Lens Spec.
-
Parameter Spec. Remark DMD Spec 1024 x 768, 13.68um 14.01 ㎜ x 10.51mm Mag. 1.68 x 1.667x ~ 1.69x NA 0.07 Object NA MTF 0.6 @ 40lp/㎜ DOF ± 150 ㎜ Image DOF Distortion 0.01% - Wavelength 365, 405, 435 ㎚ NUV Lamp FWD 110 ㎜ DMD~1st surface BWD 116 ㎜ Last surface~Image TTL 549 ㎜ DMD~Imgae Size Φ 90 ㎜ -

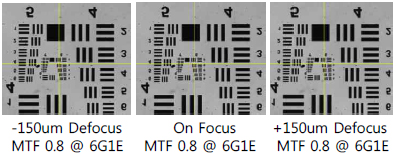

- Test Image_USAF Chart

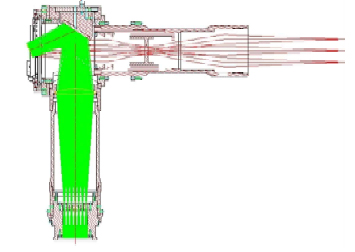

- Lens Shape

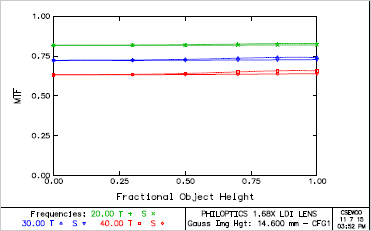

- MTF(Field)

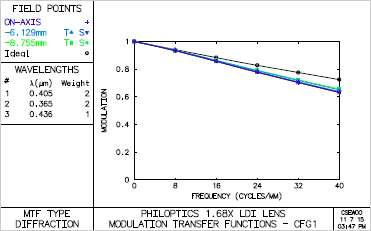

- MTF(Frequency)

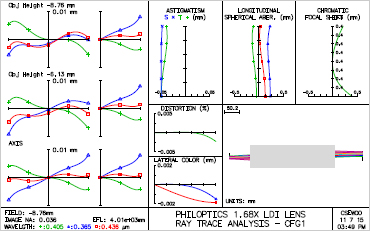

- Ray fan

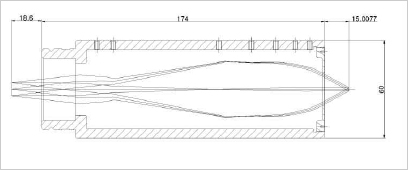

Maskless Exposure Lens 0.25x
- Lens Spec.
-
Parameter Spec. Remark Fiber Spec Ø8.5mm, 60um - Mag. 0.25 x 0.25 x NA 0.12 Image NA MTF 0.8 @ 100lp/㎜ DOF ± 140 um Image DOF Distortion 0.2% - Wavelength 405±5 ㎚ NUV Lamp FWD 33.03 ㎜ DMD~1st surface BWD 20.37 ㎜ Last surface~Image TTL 209.76 ㎜ DMD~Imgae Size Φ 60 ㎜ -
- Test Image_USAF Chart
- Lens Shape

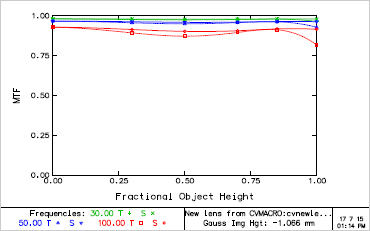

- MTF(Field)

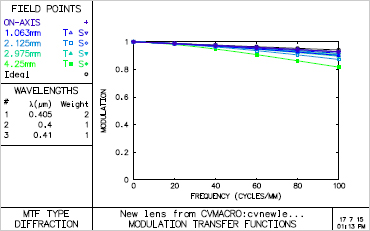

- MTF(Frequency)

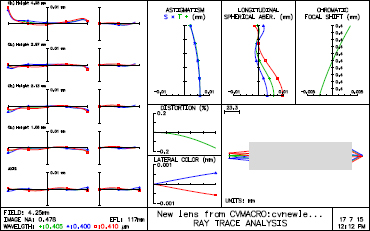

- Ray fan
