고정 초점 렌즈 AF29M002012x

Lens Spec.
Parameter Spec. Remark
Camera 29M 5.5㎛ AreaCCD CCD size 43.26 ㎜
Mag. 0.02 ~ 0.12 x
F/# F/7 Image NA 0.07
EFL 120 ㎜
MTF 0.4 @ 90lp/㎜
DOF ± 200~5.56 ㎜ Optical DOF @Object
Distortion 0.05% 이하
Wavelength 435 ~ 656 ㎚ Visible ray
FWD 6040~1040 ㎜ Object~1st surface
BWD 77.27~89.25 ㎜ Last surface~CCD
TTL 6215~1227 ㎜ Object~CCD
Size Φ 56, 106 ㎜ Only Lens
Iris Inclusion Variable
CCD adapter Exclusion Possible
Illumination Exclusion

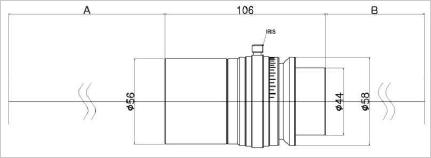

Lens Shape
AF29M002012x

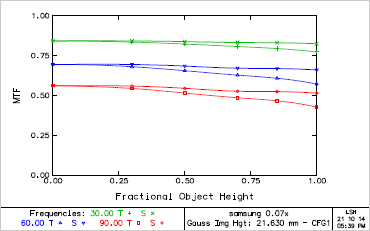

MTF(Field)_0.02x
AF29M002012x

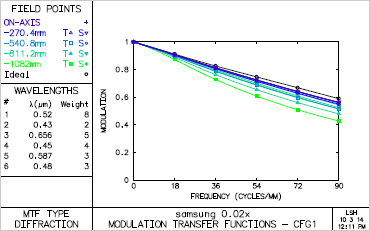

MTF(Frequency)_0.02x
AF29M002012x

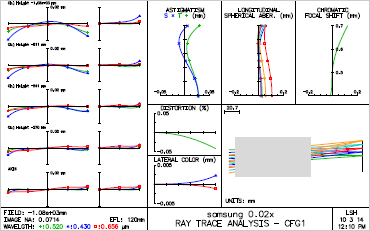

Ray fan_0.02x
AF29M002012x
AF29M002012x Test Image(0.12x)

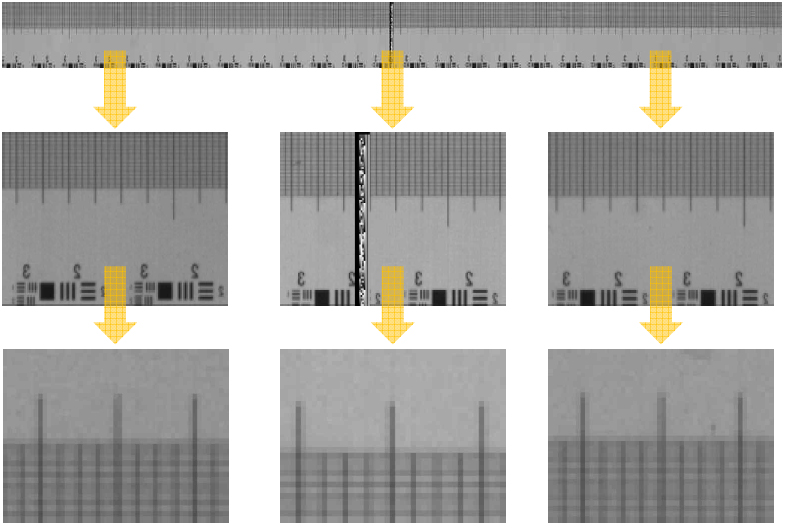

- Grid Chart

AF29M002012x

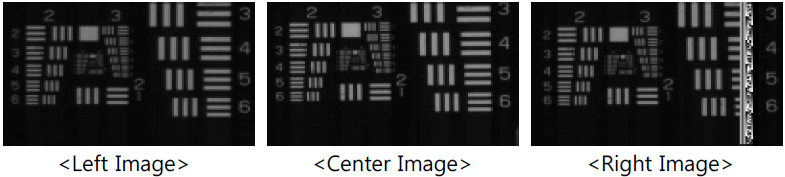

- USAF Chart

AF29M002012x
