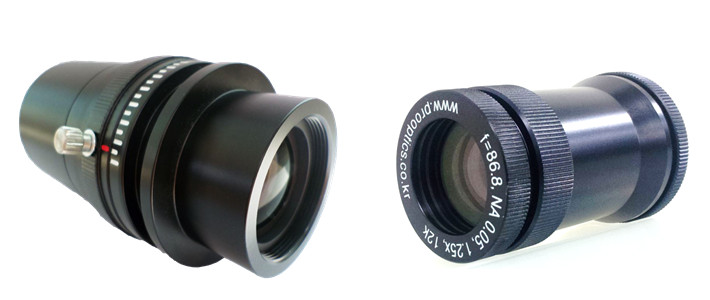

Fixed Focus Lenses
Introduction

고정초점렌즈의 특징

렌즈의 배율과 초점거리가 고정되어있는 렌즈 타입으로, 산업용 검사 광학계로 주로 사용된다.
물체거리와 상거리의 변화로 배율을 바꿀 수 있으나, 분해능이 저하되므로 제작사와 협의가 필요함

  • 용도 : Machine vision, 패턴검사, LCD 검사, PCB검사
  • 사용 카메라 : Line scan camera(16k, 12k, 8k), Area scan camera(86M, 29M, 12M)
  • 제품군 :
    AF86Mf150(0.03~0.05x), AF12Mf120(0.02~0.12x), AF12Mf45(0.01~0.06x),
    AF12k1.25x, AF12k2.6x, AF8k2.6x, AF8k4.5x, AF8kDT1.273x, AF16k Series(0.1~1.0x)
Standard Fixed Focus Lens Series
Model Mag. Line Image Sensor Image NA FWD(Object~Lens) TTL(object~Image)
AF12k0.38x  view 0.35~0.43x 12k 7㎛ 0.0625 321.0 ㎜ 509.4 ㎜
AF12k0.53x  view 0.5~0.57x 12k 7㎛ 0.05 246.2 ㎜ 447.9 ㎜
AF4kDT1.0x  view 1.0x 4k 7㎛ 0.083 70.0 ㎜ 278.2 ㎜
AF8kDT1.273x  view 1.273x 8k 7㎛ 0.055 216.6 ㎜ 676.3 ㎜
AF12k1.25x  view 1.1~1.4x 12k 7㎛ 0.042 118.3 ㎜ 335.4 ㎜
AF12k1.75x  view 1.7~1.8x 12k 5.2㎛ 16k 3.5㎛ 0.0625 68.96~66.09 ㎜ 379.1~385 ㎜
AF8k2.6x  view 2.6x 8k 7㎛ 0.05 85.5 ㎜ 486.24 ㎜
AF8k2.6xDual  view 2.6x 8k 7㎛ 0.05 15 ㎜ 486.24 ㎜
AF12k2.6x  view 2.6x 12k 5.2㎛ 0.05 15.5 ㎜ 530.07 ㎜
AF12k2.6xDual  view 2.6x 12k 5.2㎛ 0.05 8 ㎜ 530.07 ㎜
AF8k4.5x  view 4.5x 8k 7㎛ 0.04 10.5 ㎜ 500 ㎜
AF3k7.5x  view 7.5x 3k 9㎛ 0.036 15.0 ㎜ 520.5 ㎜
AF29M001006x  view 0.01~0.06x 29M(5.5㎛) 0.0625 4640~765.8 ㎜ 4785~912 ㎜
AF29M002012x  view 0.02~0.12x 29M(5.5㎛) 0.07 6040~1040 ㎜ 6215~1227 ㎜
Linear Fixed Focus 8k Lens Series(For coaxial illumination)
Model Mag. Line Image Sensor Image NA FWD(Object~Lens) TTL(object~Image)
AF8k0.9x 0.9x 8k 7㎛ 0.057 40 ㎜ 334.73 ㎜
AF8k1.0x 1.0x 8k 7㎛ 0.056 40 ㎜ 335.68 ㎜
AF8k1.1x 1.1x 8k 7㎛ 0.053 40 ㎜ 338.19 ㎜
AF8k1.2x 1.2x 8k 7㎛ 0.051 40 ㎜ 341.89 ㎜
AF8k1.3x 1.3x 8k 7㎛ 0.049 40 ㎜ 346.54 ㎜
AF8k1.4x 1.4x 8k 7㎛ 0.047 40 ㎜ 351.94 ㎜
AF8k1.5x 1.5x 8k 7㎛ 0.045 40 ㎜ 357.99 ㎜
AF8k1.6x 1.6x 8k 7㎛ 0.043 40 ㎜ 364.98 ㎜
AF8k1.4x 1.4x 8k 7㎛ 0.056 40 ㎜ 469.97 ㎜
AF8k1.5x 1.5x 8k 7㎛ 0.055 40 ㎜ 469.97 ㎜
AF8k1.6x 1.6x 8k 7㎛ 0.054 40 ㎜ 469.97 ㎜
AF8k1.7x 1.7x 8k 7㎛ 0.053 40 ㎜ 469.97 ㎜
AF8k1.8x 1.8x 8k 7㎛ 0.052 40 ㎜ 469.97 ㎜
AF8k1.9x 1.9x 8k 7㎛ 0.052 40 ㎜ 469.97 ㎜
AF8k2.0x 2.0x 8k 7㎛ 0.051 40 ㎜ 469.97 ㎜
AF8k2.1x 2.1x 8k 7㎛ 0.050 40 ㎜ 469.97 ㎜
AF8k2.2x 2.2x 8k 7㎛ 0.049 40 ㎜ 469.97 ㎜
AF8k2.3x 2.3x 8k 7㎛ 0.048 40 ㎜ 469.97 ㎜
AF8k2.4x 2.4x 8k 7㎛ 0.047 40 ㎜ 469.97 ㎜
AF8k2.5x 2.5x 8k 7㎛ 0.046 40 ㎜ 469.97 ㎜
AF8k2.6x 2.6x 8k 7㎛ 0.045 40 ㎜ 469.97 ㎜
AF8k2.7x 2.7x 8k 7㎛ 0.044 40 ㎜ 469.97 ㎜
AF8k2.8x 2.8x 8k 7㎛ 0.043 40 ㎜ 469.97 ㎜
Linear Fixed Focus 12k Lens Series(0.3~1.0x)
Model Mag. Line Image Sensor Image NA FWD(Object~Lens) TTL(object~Image)
AF12k0.3x 0.3x 12k 5㎛ 0.063 615.94 ㎜ 846.17 ㎜
AF12k0.4x 0.4x 12k 5㎛ 0.059 491.35 ㎜ 737.73 ㎜
AF12k0.5x 0.5x 12k 5㎛ 0.056 416.31 ㎜ 679.10 ㎜
AF12k0.6x 0.6x 12k 5㎛ 0.052 365.68 ㎜ 644.96 ㎜
AF12k0.7x 0.7x 12k 5㎛ 0.049 329.33 ㎜ 625.34 ㎜
AF12k0.8x 0.8x 12k 5㎛ 0.046 301.75 ㎜ 614.56 ㎜
AF12k0.9x 0.9x 12k 5㎛ 0.044 280.09 ㎜ 609.79 ㎜
AF12k1.0x 1.0x 12k 5㎛ 0.042 262.71 ㎜ 609.41 ㎜
Linear Fixed Focus 16k Lens Series(0.1~1.0x)
Model Mag. Line Image Sensor Image NA FWD(Object~Lens) TTL(object~Image)
AF16k0.1x 0.1x 12k 7㎛(16k 5㎛) 0.07 1491.4 ㎜ 1699.9 ㎜
AF16k0.2x 0.2x 12k 7㎛(16k 5㎛) 0.06 791.7 ㎜ 1014.9 ㎜
AF16k0.3x 0.3x 12k 7㎛(16k 5㎛) 0.06 558.1 ㎜ 795.9 ㎜
AF16k0.4x 0.4x 12k 7㎛(16k 5㎛) 0.05 440.9 ㎜ 693.4 ㎜
AF16k0.5xA 0.5x 12k 7㎛(16k 5㎛) 0.05 370.4 ㎜ 637.6 ㎜
AF16k0.5xB 0.5x 12k 7㎛(16k 5㎛) 0.07 394.71 ㎜ 665.54 ㎜
AF16k0.6x 0.6x 12k 7㎛(16k 5㎛) 0.07 345.28 ㎜ 632.21 ㎜
AF16k0.7x 0.7x 12k 7㎛(16k 5㎛) 0.06 309.70 ㎜ 612.76 ㎜
AF16k0.8x 0.8x 12k 7㎛(16k 5㎛) 0.06 282.82 ㎜ 602.01 ㎜
AF16k0.9x 0.9x 12k 7㎛(16k 5㎛) 0.06 261.74㎜ 597.08 ㎜
AF16k1.0x 1.0x 12k 7㎛(16k 5㎛) 0.05 244.76 ㎜ 596.24 ㎜
