고정 초점 렌즈 Ⅰ AF8k2.6xDual
- Lens Spec.
-
Parameter Spec. Remark Camera 8k 7㎛ Line CCD CCD size 57.344 ㎜ Mag. 2.6 x - F/# F/3.5 Image NA 0.05 EFL 85.71 mm MTF 0.4이상 @ 72lp/㎜ DOF ± 0.02 ㎜ Optical DOF @Object Distortion 0.2% 이하 Wavelength 450 ~ 630 ㎚ Visible ray FWD 15 ㎜ Object~Body BWD Camera Fixed TTL 495.48 ㎜ Object~CCD Size 480.48 x 219.05 x 150 ㎜ With Camera Iris Variable Manual CCD adapter Inclusion Illumination Exclusion Object Area 42.2 mm 1 mm Overlaped

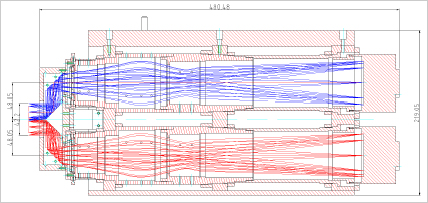

- Lens Shape

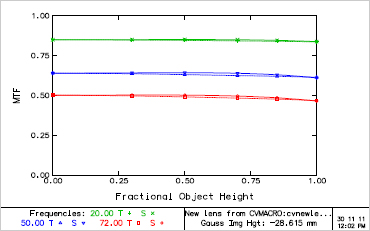

- MTF(Field)

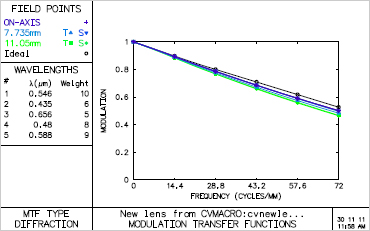

- MTF(Frequency)

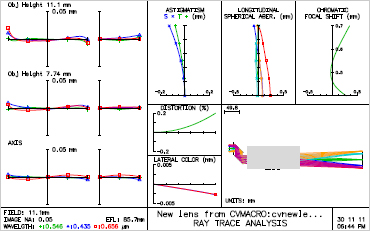

- Ray fan
- AF8k2.6x Test Image

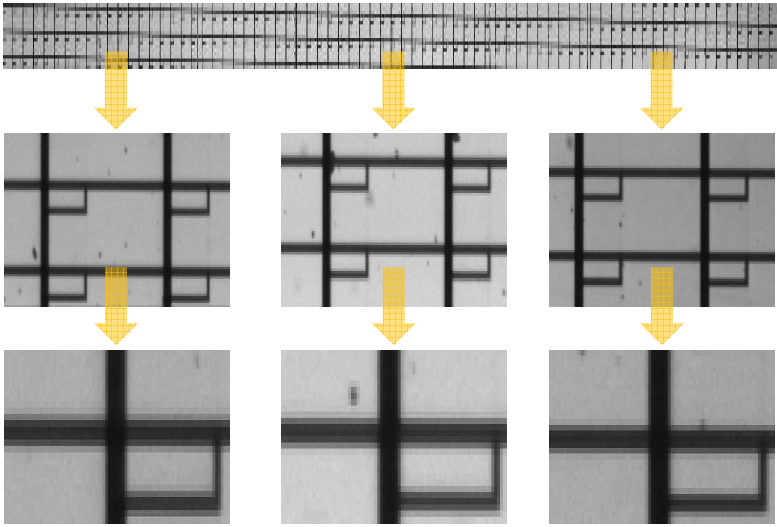

- Grid Chart

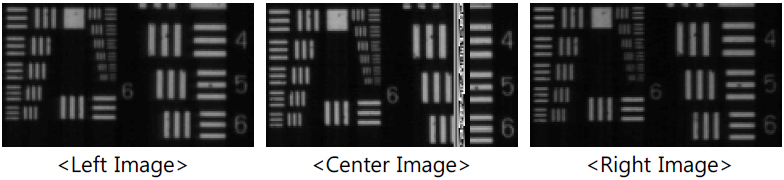

- USAF Chart
