고정 초점 렌즈 Ⅰ AF8k4.5x
- Lens Spec.
-
Parameter Spec. Remark Camera 8k 7㎛ Line CCD CCD size 57.344 ㎜ Mag. 4.5 x - F/# F/2.2 Image NA 0.04 EFL 218.12 ㎜ MTF 0.35 @ 72lp/㎜ DOF ± 0.01 ㎜ Optical DOF @Object Distortion 0.1% Wavelength 435 ~ 632 ㎚ Visible ray FWD 21 ㎜ Object~Bottom BWD Camera Fixed TTL 550 ㎜ Object~CCD Size 152 x 126 x 519.3 ㎜ Only Lens Iris Fixed CCD adapter Inclusion Illumination Inclusion On axis

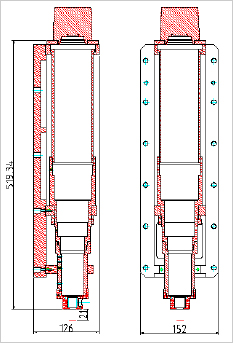

- Lens Shape

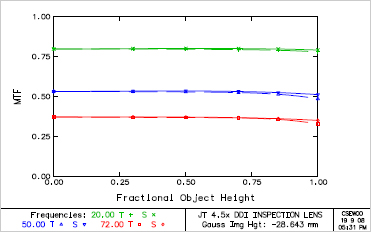

- MTF(Field)

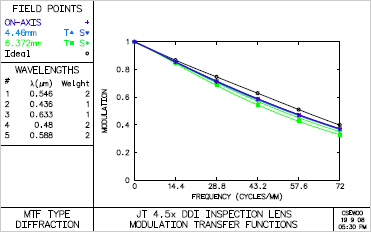

- MTF(Frequency)

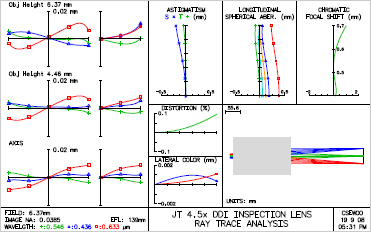

- Ray fan
- AF8k4.5x Test Image

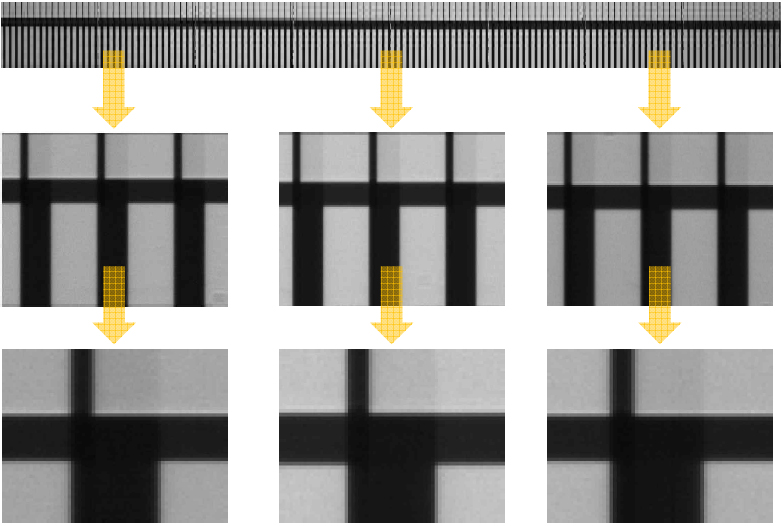

- Grid Chart

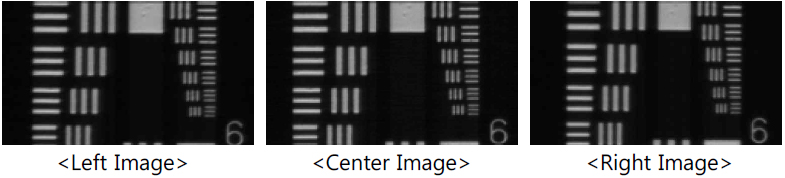

- USAF Chart
