고정 초점 렌즈 Ⅰ AF3k7.5x
- Lens Spec.
-
Parameter Spec. Remark Camera 3k 9㎛ Line CCD CCD size 27.648 ㎜ Mag. 7.5 x - F/# F/14 Image NA 0.036 EFL - Image tele-centric MTF 0.3 @ 55lp/㎜ DOF ± 0.2 ㎜ (F/6) - Distortion 0.01% 이하 Wavelength 450 ~ 630 ㎚ Included Filter FWD 15.0 ㎜ Object~Body BWD 280 ㎜ Last surface~CCD TTL 520.5 ㎜ Object~CCD Size Φ 54, 147.4 ㎜ Only Lens Iris Fixed CCD adapter Exclusion Possible Inclusion On axis Inclusion

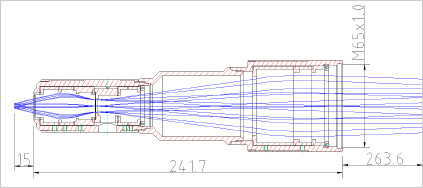

- Lens Shape

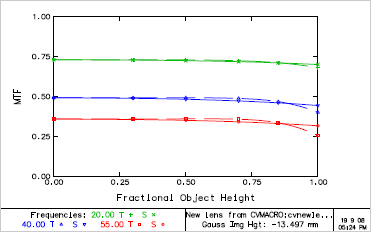

- MTF(Field)

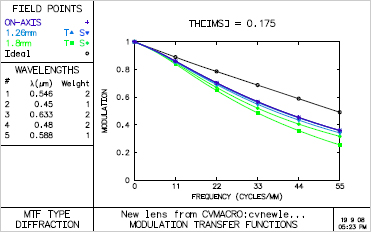

- MTF(Frequency)

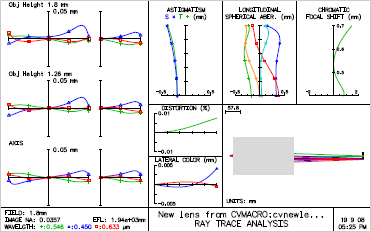

- Ray fan
