가변 초점 렌즈Ⅰ AV16k0510x
- Lens Spec.
-
Parameter Spec. Remark Camera 16k 5㎛ Line CCD CCD size 81.92 ㎜ Mag. 0.5~1.0x manual Zoomed F/# F/4.78 ~ 4.71 Image NA 0.07~0.05 EFL 148 ~ 151 ㎜ MTF 0.3 @ 100lp/㎜ DOF ±0.24 ~ ±0.11 ㎜ Optical DOF @Object Distortion 0.05 ~ 0.15 % Wavelength 435 ~ 656 ㎚ Visible ray FWD 394 ~ 244 ㎜ Object ~ 1st surface BWD 192 ~ 267 mm Last surface ~ CCD TTL 664 ~595 ㎜ Object ~ CCD Size Φ88.6, 88.5~92.85 ㎜ Only Lens Iris Fixed CCD adapter Exclusion Possible

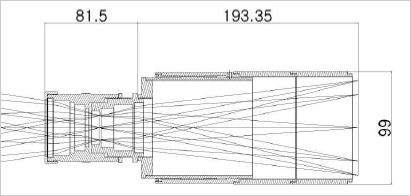

- Lens Shape(0.5x)

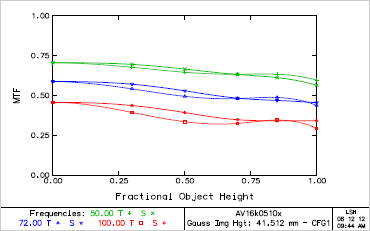

- MTF(Field)_0.5x

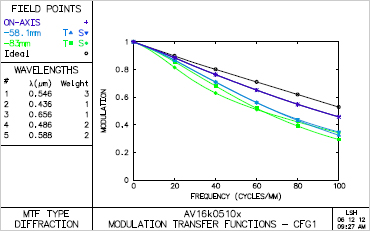

- MTF(Frequency)_0.5x

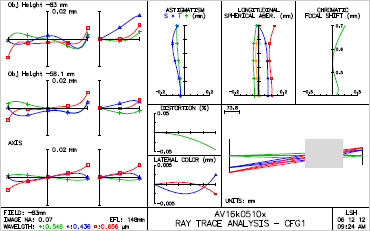

- Ray fan_0.5x
- AV16k0510x Test Image(0.6x)

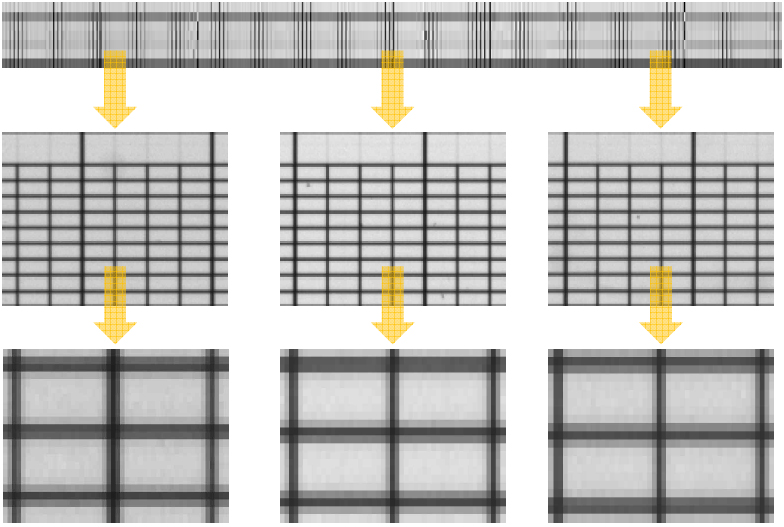

- Grid Chart

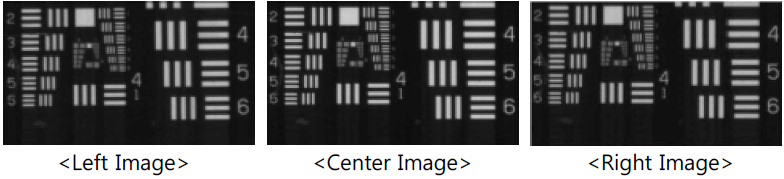

- USAF Chart
