가변 초점 렌즈Ⅰ AV4k1035x

Home   >   표준품   >   라인 스캔 렌즈   >   가변 초점 렌즈
Lens Spec.
Parameter Spec. Remark
Camera 4k 7㎛ Line CCD CCD size 28.672 ㎜
Mag. 1.0~3.5 x manual Zoomed
F/# F/1.9 ~ 4.9 Image NA 0.056
EFL 61~69 ㎜
MTF 0.3 이상 @100lp/mm
DOF ±0.1mm Optical DOF @Object
Distortion 0.05% 이하
Wavelength 600~660 ㎚ red
FWD 91.68~43.88 ㎜ Object~Bottom
BWD 68.14~227.0 　
TTL 337.09~236.17 ㎜
Size 106φ X 158 ㎜ With Camera
Iris Variable Manual
CCD adapter Exclusion
Illumination Exclusion

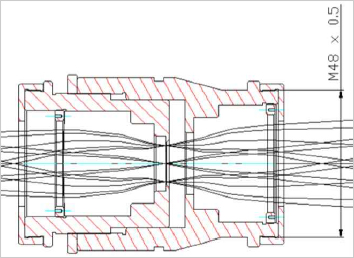

Lens Shape
AV4k1035x

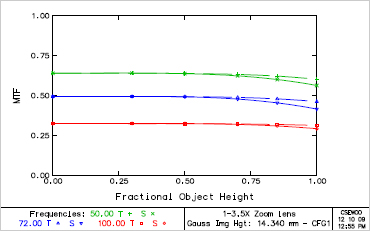

MTF(Field)_3.5x
AV4k1035x

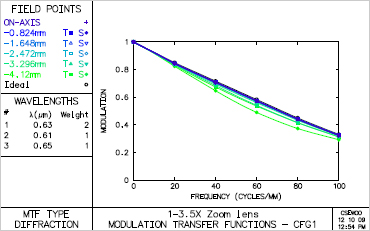

MTF(Frequency)_3.5x
AV4k1035x

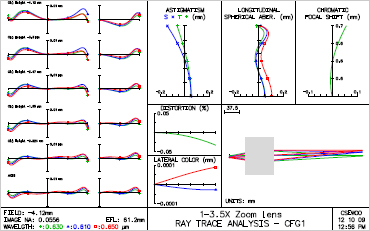

Ray fan_3.5x
AV4k1035x
