가변 초점 렌즈Ⅰ AV8k0916x30t
- Lens Spec.
-
Parameter Spec. Remark Camera 8k 7㎛ Line CCD CCD size 57.344 ㎜ Mag. 0.9~1.6 x F/# F/4.1 ~ 4.7 Image NA 0.057~0.043 EFL 90.3~83.5 ㎜ MTF 0.35~0.4 @ 72lp/㎜ DOF ± 0.12 ㎜ Optical DOF @Object Distortion ± 0.1 % Wavelength 480 ~ 656 ㎚ Visible ray FWD 35 ㎜ Object~Bottom BWD Camera Fixed TTL 364~334.7 ㎜ Zoomed Size 106x352x180 ㎜ With Camera Iris Variable Manual CCD adapter Inclusion Illumination Inclusion On axis Motor Exclusion VEXTA
PMM33A-MG20Sensor Exclusion OMRON
EE-SPX742(1ea),
EE-SPX743(1ea)
- Lens Shape

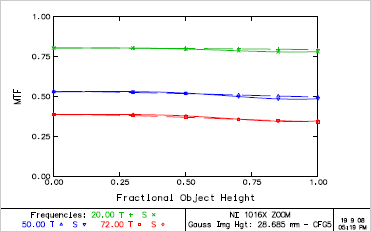

- MTF(Field)_1.25x

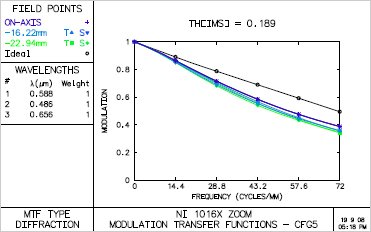

- MTF(Frequency)_1.25x

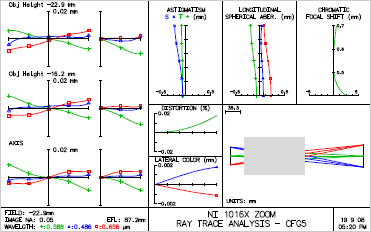

- Ray fan_1.25x
- AV8k0916x30t Test Image(0.9x)

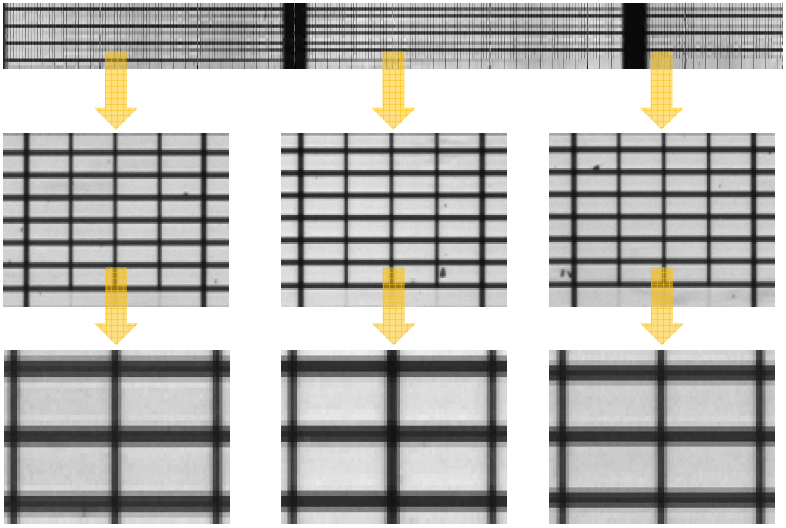

- Grid Chart

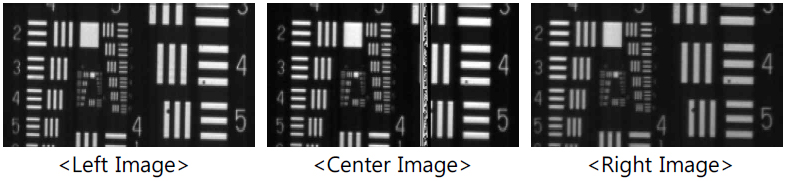

- USAF Chart
