줌 렌즈 Ⅰ AZ2k3050x
- Lens Spec.
-
Parameter Spec. Remark Camera 2k 10㎛ Line CCD CCD size 20.48 ㎜ Mag. 2.9~5.1 x F/# F/1.4 ~ 18.6 Image NA 0.028 EFL 44.2~336.9 ㎜ MTF 0.35 @ 50lp/㎜ DOF ±0.45 ㎜ Optical DOF @Object Distortion ± 0.02 % Wavelength 435 ~ 656 ㎚ Visible ray FWD 11.5 ㎜ Object~Bottom BWD Camera Fixed TTL 287.62 ㎜ Zoomed Size 138.8x336.8
x116.38 ㎜With Camera Iris Variable Use motor CCD adapter Inclusion Illumination Inclusion On axis Motor Exclusion VEXTA PK523PA-N10(Zoom)
PK523PA-N10(Iris)Sensor Exclusion OMRON
EE-SX672(4ea),
- Lens Shape

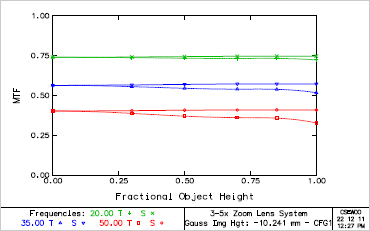

- MTF(Field)_2.9x

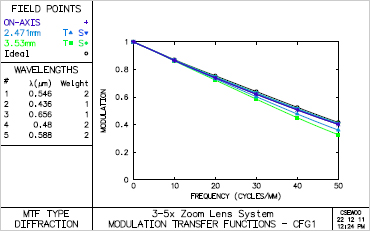

- MTF(Frequency)_2.9x

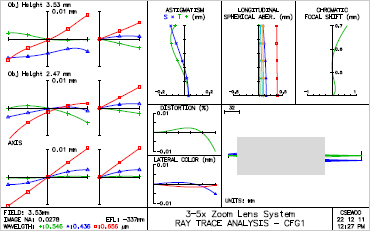

- Ray fan_2.9x
- AZ2k3050x Test Image

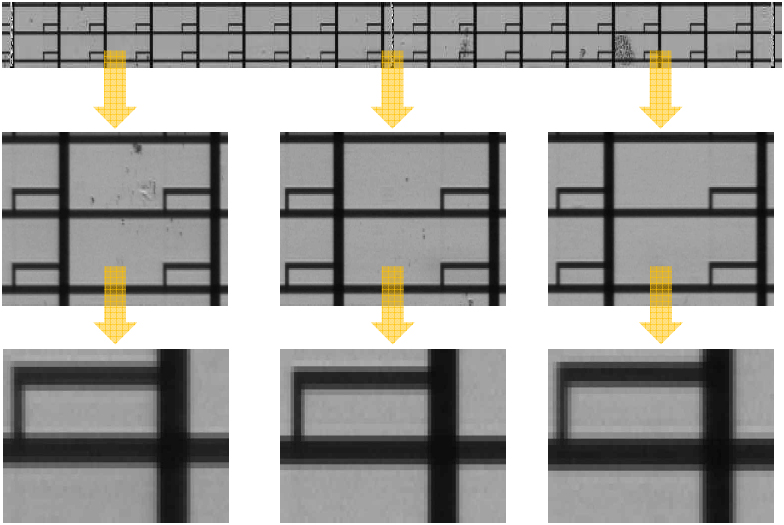

- Grid Chart

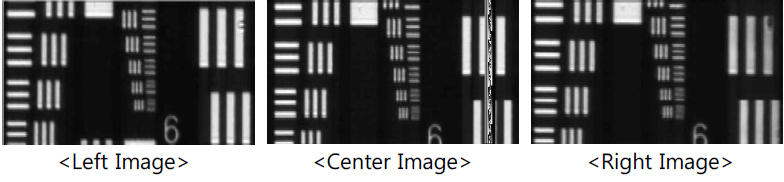

- USAF Chart
