줌 렌즈 AZ8k0916x

Lens Spec.
Parameter Spec. Remark
Camera 8k 7㎛ Line CCD CCD size 57.344 ㎜
Mag. 0.9~1.6 x
F/# F/4.1 ~ 4.7 Image NA 0.057~0.043
EFL 90.3~83.5 ㎜
MTF 0.35~0.4 @ 72lp/㎜
DOF ± 0.12 ㎜ Optical DOF @Object
Distortion ± 0.1 %
Wavelength 480 ~ 656 ㎚ Visible ray
FWD 35 ㎜ Object~Bottom
BWD Camera Fixed
TTL 364~334.7 ㎜ Zoomed
Size 106x352x180 ㎜ With Camera
Iris Variable Manual
CCD adapter Inclusion
Illumination Inclusion On axis
Motor Exclusion VEXTA
PMM33A-MG20
Sensor Exclusion OMRON
EE-SPX742(1ea),
EE-SPX743(1ea)
Lens Shape
AZ8k0916x

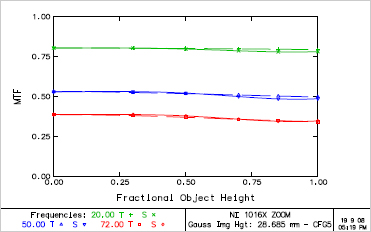

MTF(Field)_1.25x
AZ8k0916x

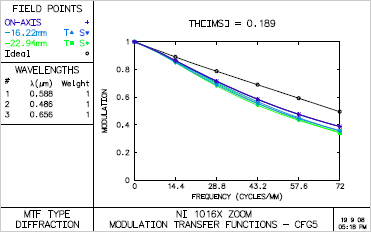

MTF(Frequency)_1.25x
AZ8k0916x

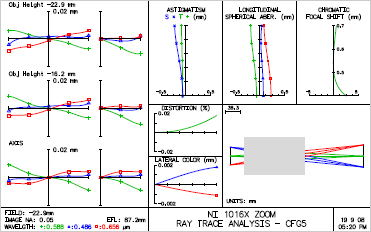

Ray fan_1.25x
AZ8k0916x
AZ8k0916x Test Image(0.9x)

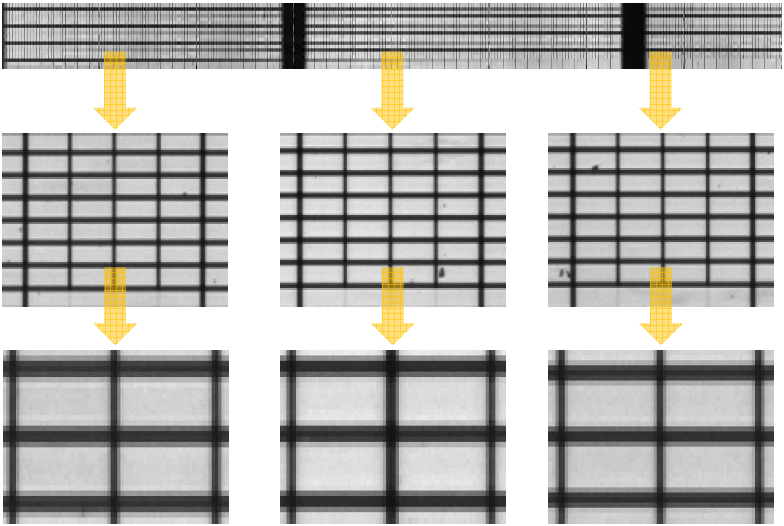

- Grid Chart

AZ8k0916x

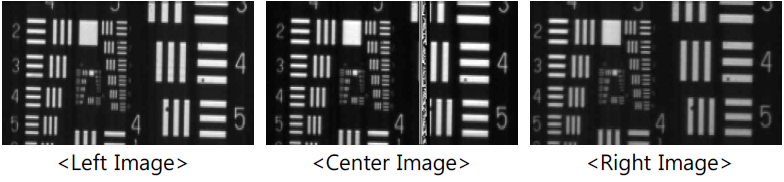

- USAF Chart

AZ8k0916x
